DSF style self cleaning filter from China manufacturer - Anhui Liquid-Filtering Equipment Manufacturing Co., Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Anhui, China (Mainland)

Product Detail

Means of Transport: Ocean,Air

Production Capacity: 3000pcs/year

1 Unit flow for self cleaning filter: 25-1200t/h
2 Controlling way: pressure, time and manual operated
3 Cleaning time: 60s

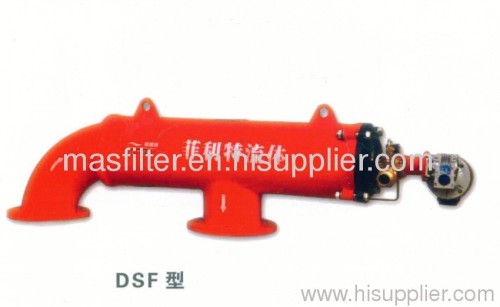

DSF-type self cleaning filter:

Unit flow: 25-1200t/h, more flow can be done by more unit.

Minimum working pressure: 0.1MPa

Maximum working pressure: 1.6MPa, 2.5MPa 4.0MPa

Maximum working temperature: 70°C

Filtering degree: 100~5000 micron

Controlling way: pressure, time and manual operated

Cleaning time: 60s

Pressure loss when cleaning: :0.01MPa

Control voltage: 220V AC

Rated operational voltage: three-phase circuit 220V 380V 50Hz

Manufacturing Material:
Shell: carbon steel construction ( or stainless steel as the customer requires)

Screen: stainless steel

Cleaning equipment: stainless steel, nylon, PVC

Waste valve: cast iron, brass, stainless steel

Sealing ring: synthetic rubber, PTFE
